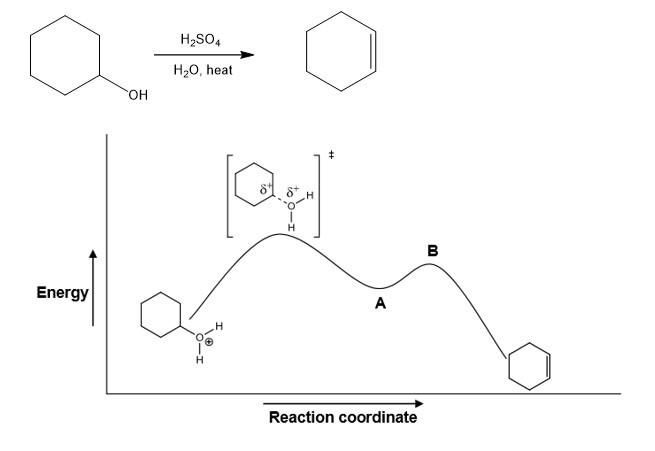

Consider the acid-catalyzed dehydration of cyclohexanol.   Starting from the protonated intermediate, a reaction coordinate diagram (which demonstrates the relative energies of the starting material, product, any intermediates and the transition state) is partially drawn.




Draw intermediate A and transition state B, clearly showing all charges and partial bonds.
